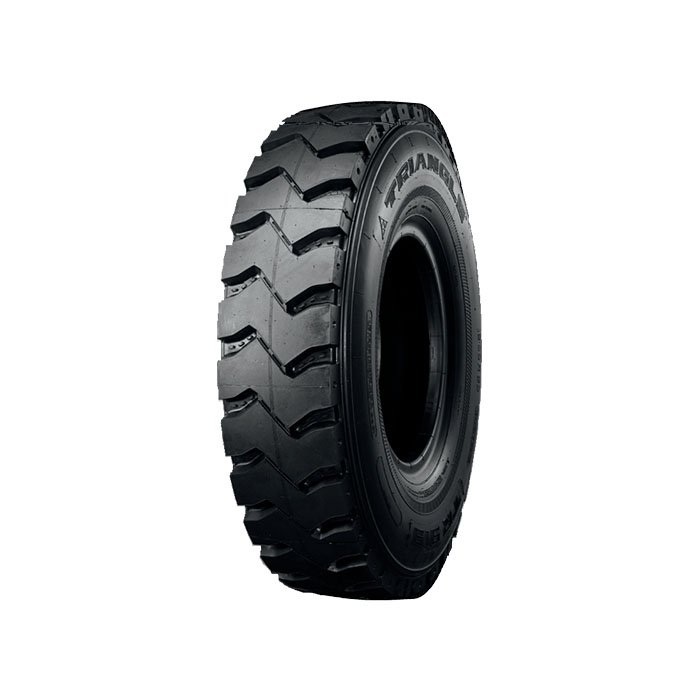

• Deepened tread pattern, longer service mileage.
• Big tread blocks with reinforced ribs, improved resistance to cuts and punctures.
• Mixed tread pattern, excellent traction and grip performance.
• Good stone ejection design, longer service mileage.
• Designed for driving axle of dump trucks and cement-stirring trucks.
Size |
PR | Loading Index |
Speed Rating |
Tread Depth(mm) |
Rim Width |
Alternative Rim | New Tire Inflated Dimensions (mm) | Max Load (Kg) |
Pressure (KPa) |
Tube |
Static Radius Under Load |
Min. Dual Tire Space | |||
7.50R16LT | 14 | 122 | 118 | K | 16.5 | 6.00G | 5.50F, 6.50H | 215 | 805 | 1500 | 1320 | 770 | TT | 375 | 255 |
8.25R16LT | 16 | 128 | 124 | K | 17.0 | 6.50H | 6.00G, 6.50 | 235 | 855 | 1800 | 1600 | 770 | TT | 397 | 278 |
9.00R20 | 16 | 144 | 142 | F | 23.0 | 7.00 | 7.50 | 259 | 1019 | 2800 | 2650 | 900 | TT | 471 | 306 |
10.00R20 | 18 | 149 | 146 | F | 24.0 | 7.50 | 8.00 | 278 | 1054 | 3250 | 3000 | 930 | TT | 486 | 328 |
11.00R20 | 18 | 152 | 149 | F | 24.0 | 8.00 | 8.50, 8.00V | 293 | 1085 | 3550 | 3250 | 930 | TT | 499 | 346 |
12.00R20 | 18 | 154 | 151 | F | 24.0 | 8.50 | 8.50V, 9.00 | 315 | 1125 | 3750 | 3450 | 830 | TT | 516 | 372 |
12.00R20 | 20 | 156 | 153 | F | 24.0 | 8.50 | 8.50V, 9.00 | 315 | 1125 | 4000 | 3650 | 900 | TT | 516 | 372 |
12.00R20 | 22 | 158 | 155 | F | 24.0 | 8.50 | 8.50V, 9.00 | 315 | 1125 | 4250 | 3875 | 970 | TT | 516 | 372 |
14.00R20 | 20 | 164 | 161 | E | 27.0 | 10.00 | 10.00W | 375 | 1240 | 5000 | 4625 | 790 | TT | 565 | 443 |
14.00R20 | 20 | 164 | 161 | D | 27.0 | 10.00 | 10.00W | 375 | 1240 | 5000 | 4625 | 790 | TT | 565 | 443 |
14.00R20 | NHS** | - | - | - | 27.0 | 10.00 | - | 375 | 1240 | 5000 | - | 700 | TT | 565 | - |
