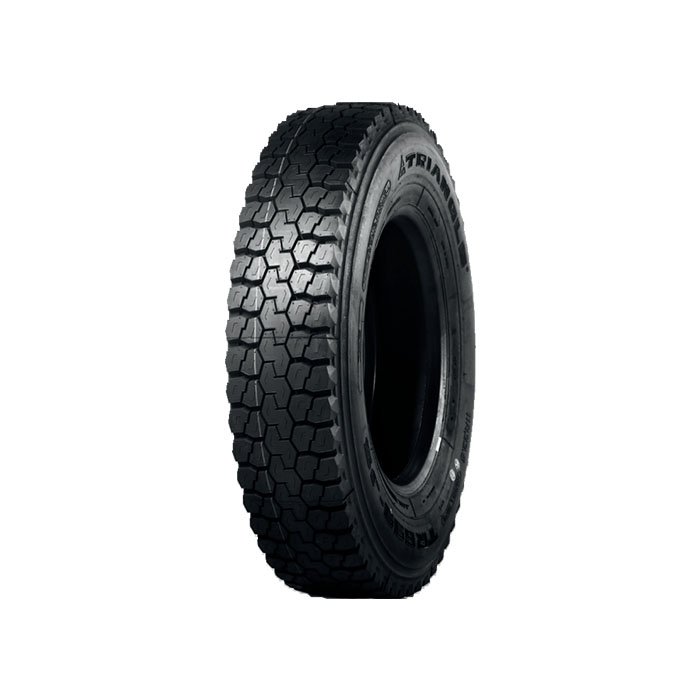

• Deepened tread patter design, extra long service mileage.
• Big tread blocks with reinforced ribs design, improved cuts and tear resistance.
• Cross pattern design, excellent traction and flotation.
• Good stone ejection design.
• Designed for driving axle of dump trucks and cement-stirring trucks.
Size |
PR | Loading Index |
Speed Rating |
Tread Depth (mm) |
Rim Width |
Alternative Rim | New Tire Inflated Dimensions (mm) | Max Load (Kg) |
Pressure (KPa) Single/Dual |
Tube |
Static Radius Under Load (mm) |
Min. Dual Tire Space (mm) | |||
12.00R20 | 20 | 156 | 153 | K | 22.0 | 8.50 | 8.50V, 9.00 | 315 | 1125 | 4000 | 3650 | 900 | TT | 516 | 372 |
11R22.5 | 16 | 146 | 143 | L | 21.0 | 8.25 | 7.50 | 279 | 1054 | 3000 | 2725 | 830 | TL | 491 | 318 |
12R22.5 | 16 | 150 | 147 | L | 22.0 | 9.00 | 8.25 | 300 | 1085 | 3350 | 3075 | 830 | TL | 504 | 342 |
12R22.5 | 18 | 152 | 149 | K | 22.0 | 9.00 | 8.25 | 300 | 1085 | 3550 | 3250 | 930 | TL | 504 | 342 |
