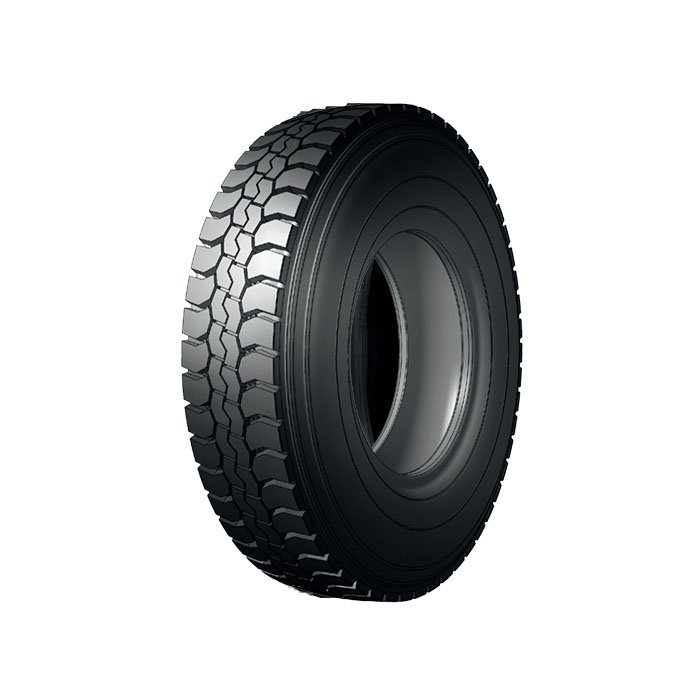

TR621

Features :

• Tread block with reinforced ribs, good puncture and cuts resistance.

• Mixed tread pattern design, excellent traction, grip performance and water drainage.

• Designed for driving axle of dump trucks on off-road and mining service.

I want to inquire

Size	PR	Loading Index		Speed Rating	Tread Depth	Rim Width	Alternative Rim	New Tire Inflated Dimensions (mm)		Max Load (Kg)		Pressure (KPa)	Tube	Static Radius Under Load	Min. Dual Tire Space
9.00R20	14	141	139	K	15.5	7.00	7.50	259	1019	2575	2430	790	TT	471	306
9.00R20	16	144	142	K	15.5	7.00	7.50	259	1019	2800	2650	900	TT	471	306
10.00R20	16	146	143	K	16.5	7.50	8.00	278	1054	3000	2725	830	TT	486	328
10.00R20	18	149	146	K	16.5	7.50	8.00	278	1054	3250	3000	930	TT	486	328
11.00R20	16	150	147	K	17.5	8.00	8.50, 8.00V	293	1085	3350	3075	830	TT	499	346
11.00R20	18	152	149	K	17.5	8.00	8.50, 8.00V	293	1085	3550	3250	930	TT	499	346
12.00R20	18	154	151	K	18.5	8.50	8.50V, 9.00	315	1125	3750	3450	830	TT	516	372
12.00R20	20	156	153	G	18.5	8.50	8.50V, 9.00	315	1125	4000	3650	900	TT	516	372
12.00R20	22	158	155	F	18.5	8.50	8.50V, 9.00	315	1125	4250	3875	970	TT	516	372
