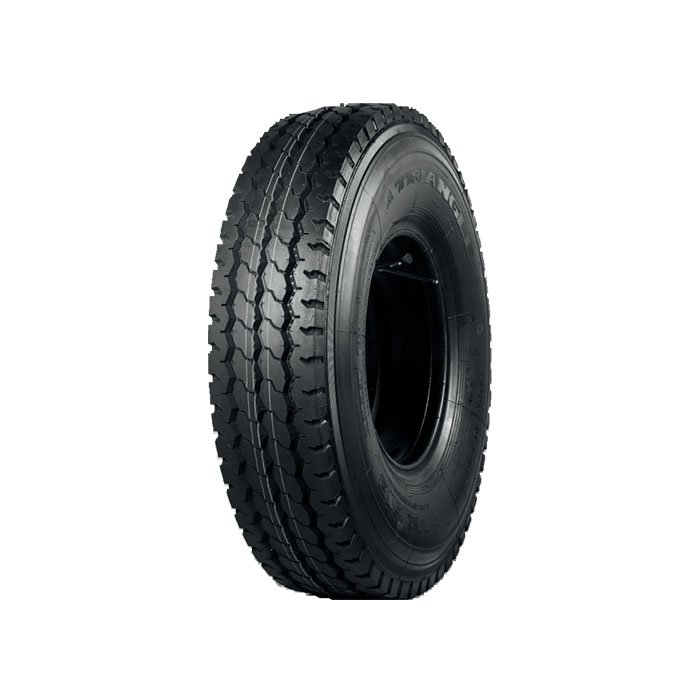

TR618-I

Features :

• Three zigzag main grooves design, excellent lateral traction and resistance to

irregular wear.

• Optimized tread design, lower rolling resistance, less fuel consumption.

• Excellent high-speed performance.

• Designed for all wheel positions of trucks and tractors on good roads.

I want to inquire

Size	PR	Loading Index		Speed Rating	Tread Depth	Rim Width	Alternative Rim	New Tire Inflated Dimensions (mm)		Max Load (Kg)		Pressure (KPa)	Tube	Static Radius Under Load	Min. Dual Tire Space
9.00R20	14	141	139	L	14.0	7.00	7.50	259	1019	2575	2430	790	TT	471	306
9.00R20	16	144	142	L	14.0	7.00	7.50	259	1019	2800	2650	900	TT	471	306
10.00R20	16	146	143	L	15.0	7.50	8.00	278	1054	3000	2725	830	TT	486	328
10.00R20	18	149	146	L	15.0	7.50	8.00	278	1054	3250	3000	930	TT	486	328
11.00R20	16	150	147	L	15.5	8.00	8.50, 8.00V	293	1085	3350	3075	830	TT	499	346
11.00R20	18	152	149	L	15.5	8.00	8.50, 8.00V	293	1085	3550	3250	930	TT	499	346
12.00R20	18	154	151	L	16.0	8.50	8.50V, 9.00	315	1125	3750	3450	830	TT	516	372
11R22.5	14	144	142	L	15.0	8.25	7.50	279	1054	2800	2650	720	TL	491	318
11R22.5	16	146	143	L	15.0	8.25	7.50	279	1054	3000	2725	830	TL	491	318
12R22.5	16	150	147	L	15.5	9.00	8.25	300	1085	3350	3075	830	TL	504	342
12R22.5	18	152	149	K	15.5	9.00	8.25	300	1085	3550	3250	930	TL	504	342
12.00R24	18	158	155	K	16.0	8.50	8.50V, 9.00	315	1226	4250	3875	830	TT	572	372
12.00R24	20	160	157	J	16.0	8.50	8.50V, 9.00	315	1226	4500	4125	900	TT	572	372
12.00R24	20	160	157	K	16.0	8.50	8.50V, 9.00	315	1226	4500	4125	900	TT	572	372
