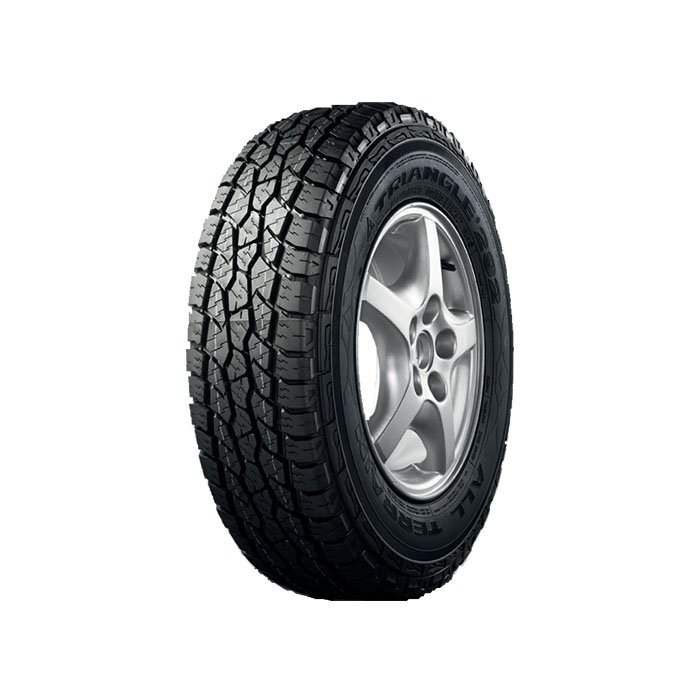

• All season design, excellent on and off-road performance.
• Four grooves design, good water drainage, improved handling and braking performance on wet ground.
• 3D shoulder design, strengthened block rigidness to eliminate irregular wear, lower noise.
• Multi-pitch pattern design, reduced noise generation between tread pattern and road.
• FEA analysis cross-section design, uniformed ground pressure and larger ground contact area, to make sure strong grip performance and high wear rate.
Size |
PR |
Loading Index |
Speed Rating | Tread Depth(mm) |
Standard Rim |
Alternative Rim | Section Width(mm) | Overall Diameter(mm) | Max Load(kg) |
Pressure (KPa) |
Tube |
LT215/75R15 | 6 | 100/97 | S | 10.8 | 6J | 5½J, 6½J | 216 | 703 | 800/730 | 350 | TL |
235/75R15 | - | 109 | S | 10.2 | 6½J | 6J, 7J, 7½J, 8J | 235 | 733 | 1030 | 340 | TL |
235/70R16 | - | 106 | S | 10 | 7J | 6J, 7J, 7½J | 240 | 736 | 950 | 350 | TL |
245/70R16 | - | 107 | S | 10.3 | 7J | 6½J, 7½J, 8J | 248 | 750 | 975 | 350 | TL |
265/70R16 | - | 112 | S | 10.4 | 8J | 7J, 7½J, 8½J, 9J | 272 | 778 | 1120 | 350 | TL |
P235/65R17 | - | 104 | T | 10 | 7J | 6½J, 7½J, 8J, 8½J | 240 | 738 | 900 | 350 | TL |
265/65R17 | - | 112 | S | 10.3 | 8J | 7½J, 8½J | 272 | 776 | 1120 | 350 | TL |
