Tire Size Designation |
Pattern |
Ply Rating |
Ind Code |
Rim Width & Flange |
Min. Dual Spacing | Approximate Inflated Dimensions | Loaded Dimensions |
Tread Depth |
Performance Capability (TKPH) |
Type | |||||||||
Overall Width | Overall Diameter | Static Load Rad | |||||||||||||||||
in | mm | in | mm | in | mm | in | mm | 32nds | mm | T1 | T2 | T3 | TT | TL | |||||

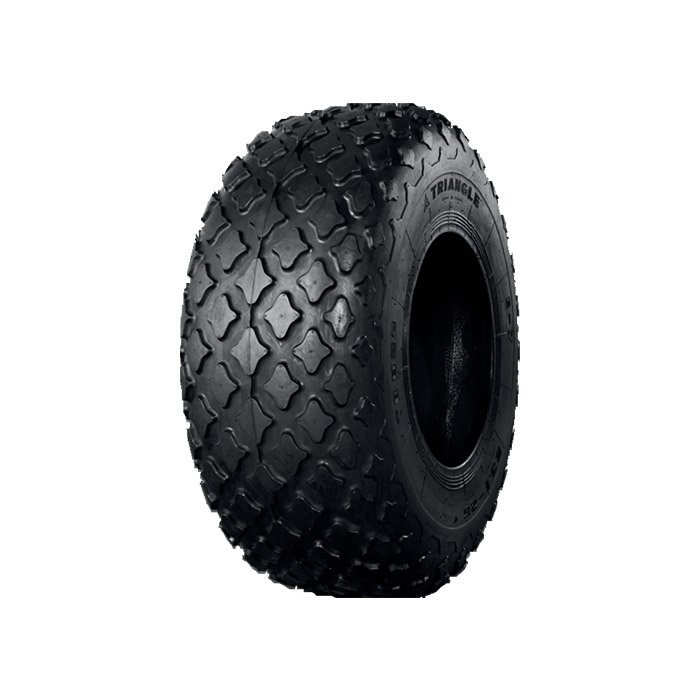

23.1-26 | TB812 TB822 | 10, 12, 14PR 12, 14PR | R-3 E-7 | DW20 DW20 | 23.1 23.4 | 587 595 | 62.2 59.1 | 1581 1500 | 35.3 18.9 | 28.0 15.0 | TL TT | ||||||||
